Thermodynamic dataset of Sakurajima key basalt and andesite
This database provides thermodynamic calculation results
for the key magmas of Sakurajima Volcano.
A series of thermodynamic data has been obtained using the
Rhyolite-MELTS software on the magma compositions of
key basalt and andesite of Sakurajima volcano
(B_EastBay
and A_1976_0525 with
SiO2 47 and 59 wt. %
and with
K2O 0.5 and 1.5 wt. %,
respectively).
The results are visualized as contour diagrams plotted on
temperature–pressure planes comprising 44,415 PNG images.
These diagrams are interlinked via hypertext, and the
associated numerical data are organized in an SQLite3
database, with guidance on extracting relevant
information.
The parameters include the amount and chemical
compositions of minerals and melt in equilibrium at some
P, T, fO2, and H2O concentrations.
These parameters were obtained using the Rhyolite-MELTS (v
1.1.0) program (Gualda et al., 2012; Asimow and Ghiorso,
1998; Ghiorso and Sack, 1995) over the range of pressure
from 1 atmosphere to 860 MPa with 1-10 MPa step,
temperature from 700 to 1400 deg-C with 1 deg-C step,
oxygen fugacity FMQ+1 log unit, water concentration 0.0,
0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6, 1.8, 2.0; 2.2,
2.4, 2.6, 2.8, 3.0, 3.2, 3.4, 3.6, 3.8, 4.0, 4.2, 4.4,
4.6, 4.8, 5.0, 5.2, 5.4, 5.6, 5.8, 6.0, 6.2, 6.4, 6.6,
6.8, 7.0, 7.2, 7.4, 7.6, 7.8, 8.0 wt.% H2O,
and CO2 0.001, 0.01, 0.1, and 1 wt.%.
Since the Rhyolite-MELTS program outputs huge quantities of
numerical values, I summarized them into a suite of contour
maps on a pressure-temperature plane using the GMT program
(Wessel and Smith, 1998) and utilized them cross-linked to
develop a convenient tool.
In addition, you can extract numerical data from the plot
using the sqlite3 command, following the
Command Tips on the graph pages.

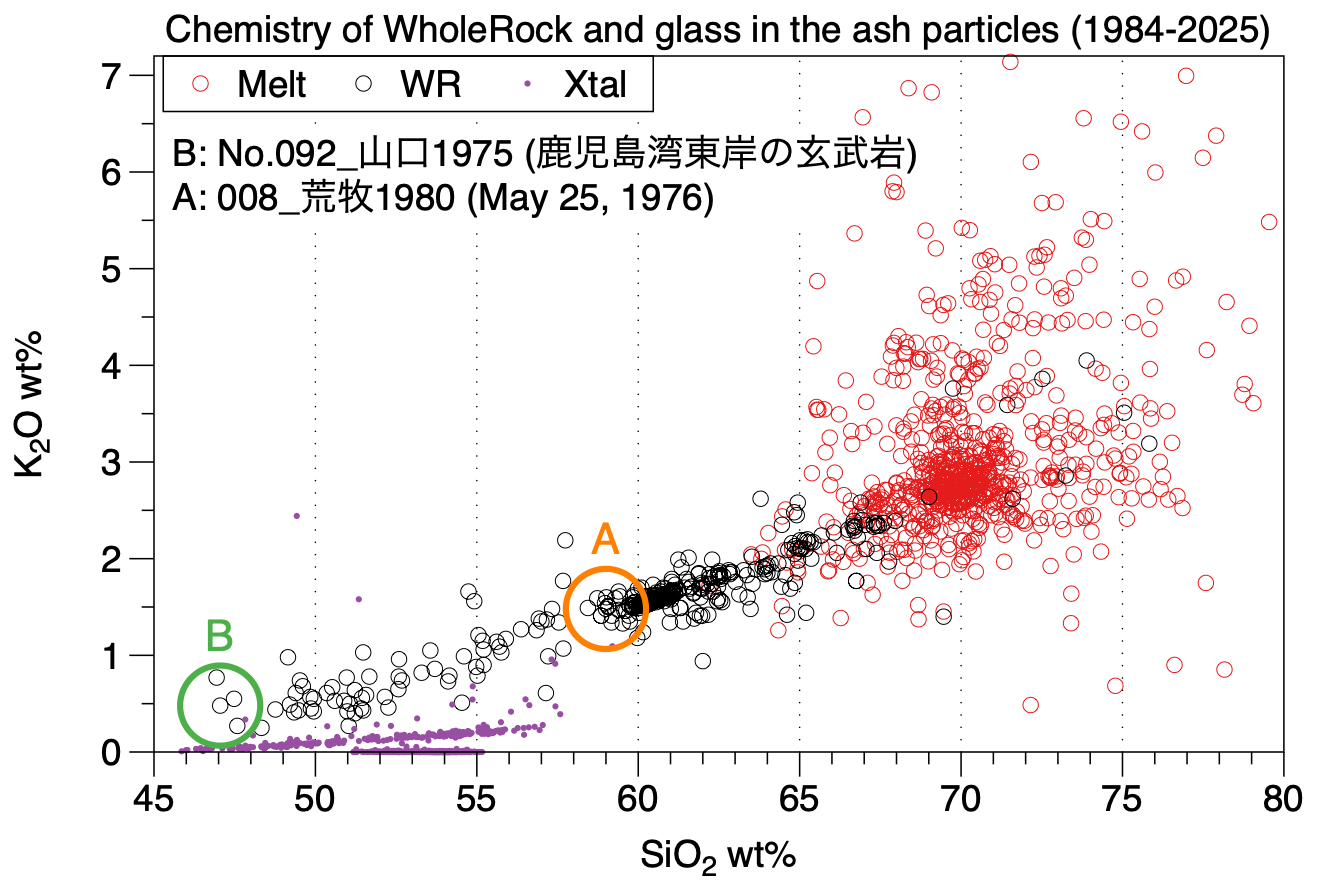

Figure 1.
K2O - SiO2
variation diagram of the eruptive products of Sakurajima volcano.
B:
whole-rock chemical composition of primitive basalt from
the eastern Kagoshima bay (Yamaguchi, 1975).
A:
whole-rock chemical composition of mafic end-member
andesitic volcanic ejecta of 25 May 1976 (Aramaki,
1980).
Red open circles (Melt):
interstitial glass of matrix and melt inclusions in
phenocrysts (Miyagi et al., 2010, 2013; Miyagi
unpublished data).
Black open circles (WR):
whole-rock chemical composition (Yamaguchi, 1975;
Aramaki, 1975, 1977, 1980;
Fukuyama and Ono, 1981;
Aramaki and Masui, 1982;
Aramaki and Kobayashi, 1986, 1988;
Kobayashi and Aramaki, 1989;
Yanagi+1991
Fujii and Kobayashi, 1995;
Miki et al., 2003).
Purple dots (Xtal):
chemical composition of phenocrysts and micro-phenocryst.
Starting material of the MELTS computations
| No. | SiO2 | TiO2 | Al2O3 | tFeO | MnO | MgO | CaO | Na2O | K2O | P2O5 | S | Cl | F | Total | what | Comment |
| B_EastBay | 47.05 | 0.78 | 20.09 | 10.26 | 0.07 | 5.66 | 13.2 | 1.98 | 0.48 | 0.11 | 0 | 0 | 0 | 99.68 | No.092 Yamaguchi_1975 | WR, Basalt of the eastern Kagoshima bay |
| A_1976_0525 | 59 | 0.78 | 16.6 | 6.84 | 0.15 | 3.11 | 7.93 | 3.16 | 1.48 | 0.19 | 0 | 0 | 0 | 99.24 | 008 Aramaki_1980 | WR, 25 May 1976 volcanic ejecta |
WR: Whole-rock chemical composition
Pfd: Pyroclastic flow deposit.
An example of citation:
Miyagi (2025)
Thermodynamic dataset of Sakurajima key basalt and andesite
https://doi.org/10.57765/2003426
References:
-
Aramaki, S. (1975).
Geology/Ejecta.
Comprehensive survey report on Sakurajima Volcano
(December 1970 - March 1975),
Ministry of Education, Culture, Sports, Science and
Technology Grant-in-Aid for Natural Disaster Special
Research,
Natural Disaster Special Research “Comprehensive Survey of
Sakurajima Volcano” Research Group,
79-88.
(in Japanese)
荒牧 重雄 (1975).
地質・噴出物.
桜島火山の総合調査報告（昭和49年12月〜昭和50年3月）,
文部省科学研究費自然災害特別研究,
自然災害特別研究「桜島火山の総合調査」研究班,
79-88.
-
Aramaki, S. (1978).
Foundation of Aira Caldera and ejecta of Sakurajima Volcano.
2nd Intensive Comprehensive Observation of Sakurajima
Volcano (November-December 1976),
Large-scale joint research intensive comprehensive
observation of major active volcanoes nationwide,
Disaster Prevention Research Institute Kyoto University,
Research Center for Volcano Hazards Mitigation,
105-119.
(in Japanese)
荒牧 重雄 (1978).
姶良カルデラの基盤と桜島火山の噴出物
第2回桜島火山の集中総合観測（昭和51年11月〜12月）,
大型共同研究全国主要活火山の集中総合観測,
京都大学防災研究所附属桜島火山観測所,
105-119.
-
Aramaki, S. (1980).
Chemical composition of recent ejecta from Mt. Minamidake,
Sakurajima volcano. 3rd Intensive Comprehensive
Observation of Sakurajima Volcano (October-December 1978),
Intensive comprehensive observation of major active
volcanoes nationwide.
Disaster Prevention Research Institute Kyoto University,
Research Center for Volcano Hazards Mitigation,
p.105-109 (in Japanese).
荒牧 重雄(1980). 桜島火山南岳の最近の噴出物の化学組成.
第3回桜島火山の集中総合観測(昭和53年10〜12月),
全国主要活火山の集中総合観測.
京都大学防災研究所附属桜島火山観測所, 105-109.
-
Aramaki, S. and Kobayashi, T. (1986).
Whole-rock composition of ejecta from Aira caldera and
Sakurajima volcano and Yasunaga eruption.
5th Intensive Comprehensive Observation of Sakurajima
Volcano (October-December 1981), Intensive comprehensive
observation of major active volcanoes nationwide,
Disaster Prevention Research Institute Kyoto University,
Research Center for Volcano Hazards Mitigation,
115-129.
(in Japanese)
荒牧 重雄, 小林 哲夫 (1986).
姶良カルデラ・桜島火山の噴出物の全岩組成と安永噴火.
第5回桜島火山の集中総合観測（昭和57年10〜12月）,
全国主要活火山の集中総合観測,
京都大学防災研究所附属桜島火山観測所,
115-129.
-
Aramaki, S. and Kobayashi, T. (1988).
Changes in whole-rock composition of recent ejecta from
Mt. Minamidake, Sakurajima.
6th Intensive Comprehensive Observation of Sakurajima
Volcano (October to December 1985), Intensive
comprehensive observation of major volcanoes nationwide,
Disaster Prevention Research Institute Kyoto University,
Research Center for Volcano Hazards Mitigation,
111-123. (in Japanese)
荒牧 重雄, 小林 哲夫 (1988).
桜島南岳の最近の噴出物の全岩組成変化
第6回桜島火山の集中総合観測（昭和60年10月〜12月）,
全国主要火山の集中総合観測
京都大学防災研究所附属桜島火山観測所
111-123.
-
Aramaki, S. and Masui, A. (1982).
Chemical composition of Sakurajima volcanic
ejecta--especially characteristics of rare earth element
distribution--.
4th Intensive Comprehensive Observation of Sakurajima
Volcano (October-December 1980), Intensive comprehensive
observation of major active volcanoes nationwide,
Disaster Prevention Research Institute Kyoto University,
Research Center for Volcano Hazards Mitigation,
103-106.
(in Japanese)
荒牧 重雄, 増井 暁夫 (1982).
桜島火山噴出物の化学組成--特に希土類元素分布の特徴--
第4回桜島火山の集中総合観測（昭和55年10〜12月）,
全国主要活火山の集中総合観測,
京都大学防災研究所附属桜島火山観測所,
103-106.
-
Asimow, P. and Ghiorso, M. (1998). Algorithmic modifications
extending melts to calculate subsolidus phase relations.
American Mineralogist 83, 1127–1131.
https://doi.org/10.2138/am-1998-9-1022
-
Fujii, T. and Kobayashi, T. (1995)
Whole-rock chemical composition of recent ejecta from Mt.
Minamidake, Sakurajima.
8th Intensive Comprehensive Observation of Sakurajima Volcano
(October 1991 - March 1992),
Intensive comprehensive observation of major active
volcanoes nationwide,
Disaster Prevention Research Institute Kyoto University,
Research Center for Volcano Hazards Mitigation,
81-88. (in Japanese)
藤井敏嗣, 小林哲夫(1995).
桜島南岳の最近の噴出物の全岩化学組成
第8回桜島火山の集中総合観測（平成3年10月〜平成4年3月）,
全国主要活火山の集中総合観測,
京都大学防災研究所附属桜島火山観測所,
81-88.
-
Fukuyama, H. and Ono, K. (1981)
Geological Map of Sakurajima Volcano, 1:25,000.
Geological Map of Volcanoes,
Geological Survey of Japan.
https://gbank.gsj.jp/ld/resource/publication/map/volc/map817
-
Ghiorso, M. S. and Sack, R. O. (1995). Chemical mass transfer
in magmatic processes iv. a revised and internally
consistent thermodynamic model for the interpolation and
extrapolation of liquid-solid equilibria in magmatic
systems at elevated temperatures and pressures.
Contributions to Mineralogy and Petrology 119, 197–212.
https://doi.org/10.1007/BF00307281
-
Gualda, G. A. R., Ghiorso, M. S., Lemons, R. V., and
Carley, T. L. (2012). Rhyolite-MELTS:
a Modified Calibration of MELTS Optimized for Silica-rich,
Fluid-bearing Magmatic Systems.
J. Petrol., 53(5):875–890.
https://doi.org/10.1093/petrology/egr080
-
Kobayashi, T. and Aramaki, S. (1989).
Changes in the composition of recent ejecta from Sakurajima Volcano.
Kagoshima International Volcano Conference Proceedings 1988,
National Research and Development Organization, Kagoshima Prefecture,
36-39.
(in Japanese)
小林 哲夫, 荒牧 重雄 (1989).
桜島火山の最近の噴出物の組成変化.
鹿児島国際火山会議論文集1988,
総合研究開発機構, 鹿児島県
36-39.
-
Miki, D., Uto, K., Sudo, M. and Ishihara, K. (2003).
Correlation of Lavas on Drilled Cores from the Sakurajima
Volcano, Inferred from Paleomagnetic and Chemical
Features.
Annuals of Dias. Prev. Res. Inst. Kyoto Univ.,
No46 B, 835-840. (in Japanese with English abstract)
味喜大介, 宇都浩三, 周藤正史, 石原和浩. (2003).
古地磁気と全岩化学組成からみた桜島火山観測井ボーリングコア中の溶岩の対比.
京都大学防災研究所年報. B, 46(B), 835-840.
http://hdl.handle.net/2433/129104
-
Wessel, P. and Smith, W. (1998). New, improved version of
generic mapping tools released. EOS Trans. Amer. Geophys.
U. 79 (47), 579.
https://doi.org/10.1029/98EO00426
-
Yamaguchi, Kenji (1975).
Geological and petrological research of the area around
Kagoshima Bay and Sakurajima Volcano (posthumous
manuscript). Edited by Professor Kamaji Yamaguchi's
Posthumous Paper Editorial Committee, Japan Society Of
Earth Science Education (JSESE), 128p. (in Japanese)
山口鎌次 (1975). 鹿児島湾周辺地域及び桜島火山の
地質学的並びに岩石学的研究(遺稿)，
日本地学教育学会，
山口鎌次先生遺稿論文編集委員会編，
128p．
-
Yanagi, T., Ichimaru, Y., and Hirahara, S. (1991).
Petrochemical evidence for coupled magma chambers beneath
the Sakurajima volcano, Kyushu, Japan. Geochemical
Journal, 25(1), 17-30.
https://doi.org/10.2343/geochemj.25.17
Version history:
- January 2026: Initial release
